Introduction

Hello,
this lab was the first lab I created. I used it to learn more about RIP, EIGRP and OSPF while I was studing for my CCNA test.

The idea is to start with static routes (with an AD of 150) and to add the other routing protocols. I used serial connections, they go down if you shutdown the other side. I used bandwith 10000 for the ethernet and bandwidth 2048 for the serial connections.

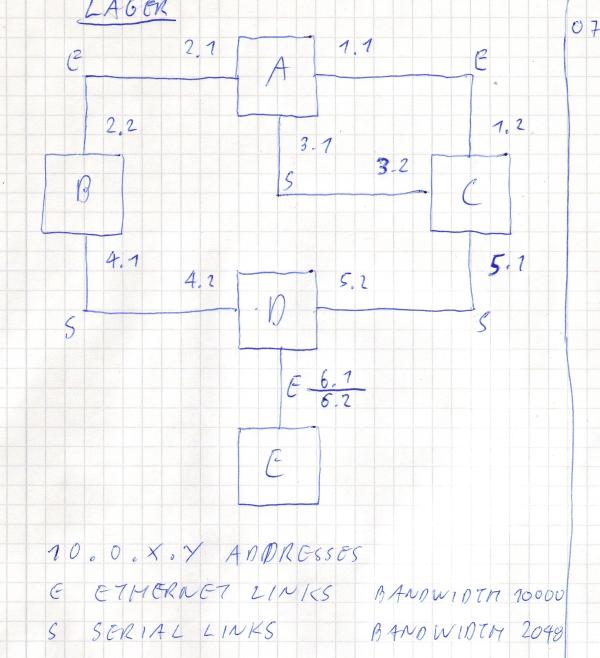

The network diagram above is hand drawn (sorry, it was a quick hack). The "E" is for ethernet connections, the "S" for serial connections. I used the 10.0.x.y IP address range and the above mentioned bandwith settings for this lab.

My plan is to improve this lab and to add at least configs to start with.
Bye, Tore

dynagen file: lager.net

# 20071207 crissa lager.net
#
# (this) net file: http://www.gasit.de/dynamips/20071207/lager.net
#
# network diagram: http://www.gasit.de/dynamips/20071207/lager.jpg
# config files: sorry, no config files
#

[localhost]

[[7200]]
image = /opt/dynamips/ios/c7200-jk9s-mz.124-8.image.bin
# idlepc = 0x60843b8c
ram = 128
disk0 = 0
disk1 = 0

[[ROUTER lab_a]]
# 3640
model = 7200
# f0/0 = NIO_linux_eth:eth1
# e1/0 = lab_c e1/0
# e1/1 = lab_b e1/0
s1/0 = lab_c s1/0
s1/1 = lab_b s1/0
s2/0 = lab_c s2/0

[[ROUTER lab_b]]
# 2620
model = 7200
s2/0 = lab_d s2/0

[[ROUTER lab_c]]
# 2610
model = 7200
s2/1 = lab_d s2/1

[[ROUTER lab_d]]
# 2610
model = 7200
#e1/0 = lab_e e1/0
s1/0 = lab_e s1/0

[[ROUTER lab_e]]
# 2610
model = 7200

# eof
