Introduction

Hello,
a simple connection example (using direct, hub, real switch and virtual switch cconnections).

The idea is to show how to setup a direct connection, a hub, a real switch (3640 router with NM-16ESW modul) and a virtual switch.
Bye, Tore

dynagen file: 4r1s.net

# 20071228 crissa 4r1s.net
#
# simple connection example
#
# homepage: http://www.gasit.de/dynamips/4r1s/
#
# (this) net file: http://www.gasit.de/dynamips/20071228/4r1s.net
#

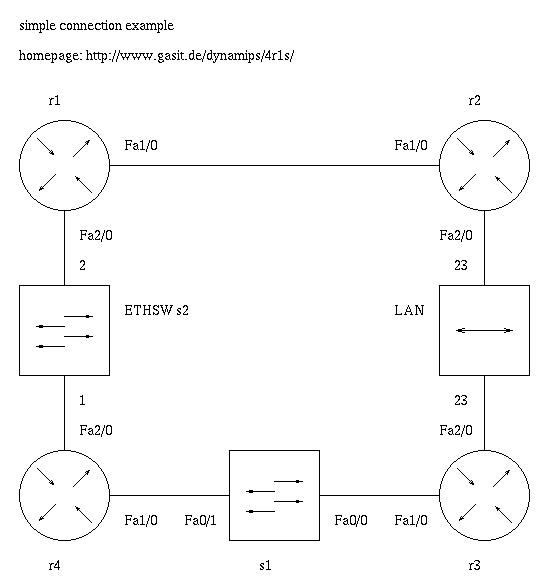

# network diagram: http://www.gasit.de/dynamips/2007122r81/4r1s.png
# config files: http://www.gasit.de/dynamips/20071228/r1.cfg
# config files: http://www.gasit.de/dynamips/20071228/r2.cfg
# config files: http://www.gasit.de/dynamips/20071228/r3.cfg
# config files: http://www.gasit.de/dynamips/20071228/r4.cfg
# config files: http://www.gasit.de/dynamips/20071228/s1.cfg
#

ghostios = true
sparsemem = true

[localhost]

[[3640]]
image = /opt/dynamips/ios/c3640-is-mz.123-15.image.bin
mem = 96

[[router r1]]
model = 3640
# direct link to r2 fa1/0
fa1/0 = r2 fa1/0
# link to s2 port 2
fa2/0 = s2 2
cnfg=/opt/dynamips/4r1s/cfg/r1.cfg

[[router r2]]
model = 3640
# link to lan 23
fa2/0 = lan 23
cnfg=/opt/dynamips/4r1s/cfg/r2.cfg

[[router r3]]
model = 3640
# link to lan 23
fa2/0 = lan 23
# link to s1 port fa0/0
fa1/0 = s1 fa0/0
cnfg=/opt/dynamips/4r1s/cfg/r3.cfg

[[router r4]]
model = 3640
# link to s1 port fa0/1
fa1/0 = s1 fa0/1
# link to s2 port 1
fa2/0 = s2 1
cnfg=/opt/dynamips/4r1s/cfg/r4.cfg

[[router s1]]
model = 3640
slot0 = NM-16ESW
cnfg=/opt/dynamips/4r1s/cfg/s1.cfg

[[ETHSW s2]]
1 = access 1
2 = access 1

# eof

Download

The *.net file
- 4r1s.net
The *.cfg files
- r1.cfg
- r2.cfg
- r3.cfg
- r4.cfg
- s1.cfg

History

26.03.2008: The lab also works with the c3640-ik9o3s-mz.124-18.bin IOS.
28.12.2007: First 4r1s.net *.html files.
